APPENDIX G
IDENTIFICATION ON SAILS

See rule 77.

G1

WORLD SAILING CLASS BOATS

G1.1

Identification

Every boat of a World Sailing Class shall carry on her mainsail and, as provided in rule G1.3(c) for letters and numbers only, on her spinnaker and headsail

(a) the insignia denoting her class;

(b) at all international events, except when the boats are provided to all competitors, national letters denoting her national authority from the table below. For the purposes of this rule, international events are World Sailing events, world and continental championships, and events described as international events in their notices of race; and

(c) a sail number of no more than four digits allotted by her national authority or, when so required by the class rules, by the class association. The four-digit limitation does not apply to classes whose World Sailing membership or recognition took effect before 1 April 1997. Alternatively, if permitted in the class rules, an owner may be allotted a personal sail number by the relevant issuing authority, which may be used on all the owner's boats in that class.

Sails measured before 31 March 1999 shall comply with rule G1.1 or with the rules applicable at the time of measurement.

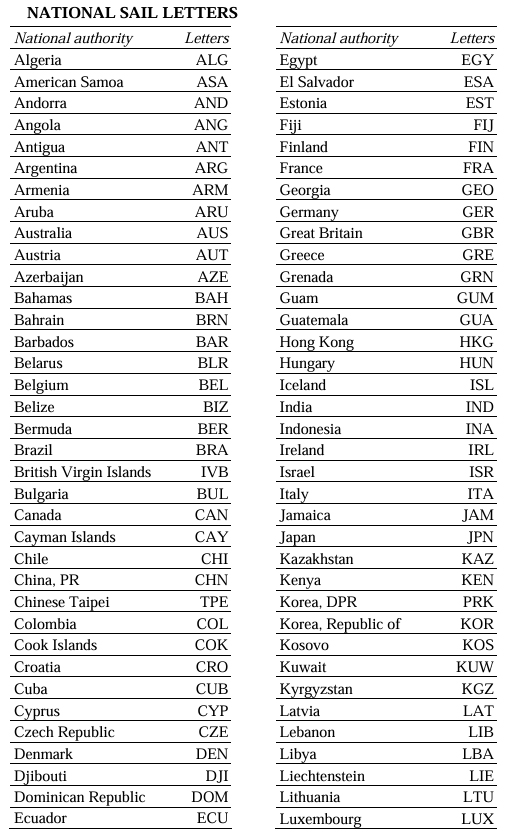

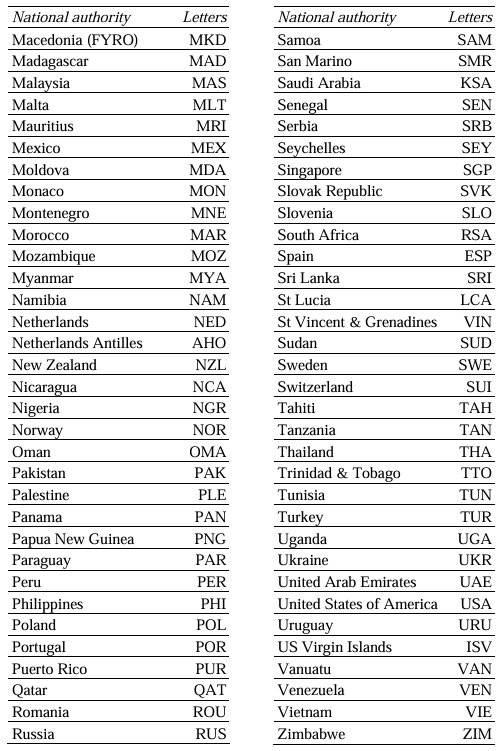

Note: An up-to-date version of the table below is available on the World Sailing website.

G1.2

Specifications

(a) National letters and sail numbers shall be:

    (1) in capital letters and Arabic numerals,

    (2) of the same colour,

    (3) of a contrasting colour to the body of the sail, and

    (4) of a sans-serif typeface.

In addition, the letters and numbers identifying the boat shall be clearly legible when the sail is set.

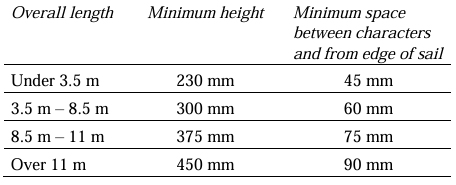

(b) The height of characters and space between adjoining characters on the same and opposite sides of the sail shall be related to the boat's overall length as follows:

G1.3

Positioning

Class insignia, national letters and sail numbers shall be positioned as follows:

(a) General

    (1) Class insignia, national letters and sail numbers, where applicable, shall be placed on both sides and such that those on the starboard side are uppermost.

    (2) National letters shall be placed above the sail numbers on each side of the sail.

(b) Mainsails

    (1) The class insignia, national letters and sail numbers shall, if possible, be wholly above an arc whose centre is the head point and whose radius is 60% of the leech length.

    (2) The class insignia shall be placed above the national letters. If the class insignia is of a design that it may be placed back to back, then it may be so placed.

(c) Headsails and Spinnakers

    (1) National letters and sail numbers are only required on a headsail whose foot length is greater than 1.3 x foretriangle base.

    (2) The national letters and sail numbers of headsails shall be displayed wholly below an arc whose centre is the head point and whose radius is 50% of the luff length and, if possible, wholly above an arc whose radius is 75% of the luff length.

    (3) The national letters and sail number shall be displayed on the front side of a spinnaker but may be placed on both sides. They shall be displayed wholly below an arc whose centre is the head point and whose radius is 40% of the foot median and, if possible, wholly above an arc whose radius is 60% of the foot median.

G2

OTHER BOATS

Other boats shall comply with the rules of their national authority or class association in regard to the allotment, carrying and size of insignia, letters and numbers. Such rules shall, when practicable, conform to the above requirements.

G3

CHARTERED OR LOANED BOATS

When so stated in the notice of race or sailing instructions, a boat chartered or loaned for an event may carry national letters or a sail number in contravention of her class rules.

G4

WARNINGS AND PENALTIES

When a protest committee finds that a boat has broken a rule of this appendix, it shall either warn her and give her time to comply or penalize her.

G5

CHANGES BY CLASS RULES

World Sailing Classes may change the rules of this appendix provided the changes have first been approved by World Sailing.
